Descrizione
CNC Aluminum Hopup Chamber ME Pro, with BB Latching
System unit is precisely made to improve accuracy and ensure
consistent air seal for Tokyo Marui & similar including KRYTAC,
but no KWA M4-M16 Standard AEG series.
System unit is precisely made to improve accuracy and ensure
consistent air seal for Tokyo Marui & similar including KRYTAC,
but no KWA M4-M16 Standard AEG series.
The Hopup Chamber ME unit has a precision rotary dial design
for fine hopup adjustments, also re-engineered the hopup levers
and concave nubs to work best with R-hop, Flat-Hop and
Standard-Hop to keep the BBs shooting straight and accurate
on every single shot.
for fine hopup adjustments, also re-engineered the hopup levers
and concave nubs to work best with R-hop, Flat-Hop and
Standard-Hop to keep the BBs shooting straight and accurate
on every single shot.
The Hopup Chamber ME unit is designed to accept the nozzle
length from 21.00mm to 21.25mm, and fully compatible with most
aftermarket soft and hard rubber bucking without losing FPS or
dropping BBs.
length from 21.00mm to 21.25mm, and fully compatible with most
aftermarket soft and hard rubber bucking without losing FPS or
dropping BBs.
The Hopup Chamber ME Housing is equipped with a new CNC
Delrin Locking C-Clip design to hold barrel tight without wobbling
and twisting, and 3 compression springs on top, at bottom and in
center of housing to ensure the hopup unit is exactly centered,
straight and air tight at all times when adapted to any V2 gear
boxes with 11mm or 11.5mm inner bore.
More than that, the Hopup Chamber ME Pro unit is specially Delrin Locking C-Clip design to hold barrel tight without wobbling
and twisting, and 3 compression springs on top, at bottom and in
center of housing to ensure the hopup unit is exactly centered,
straight and air tight at all times when adapted to any V2 gear
boxes with 11mm or 11.5mm inner bore.
designed with BB Latching System to prevent dropping BBs after
removing the magazine. The Latching System can be also manually
opened to release BBs from inside hopup chamber by hand.

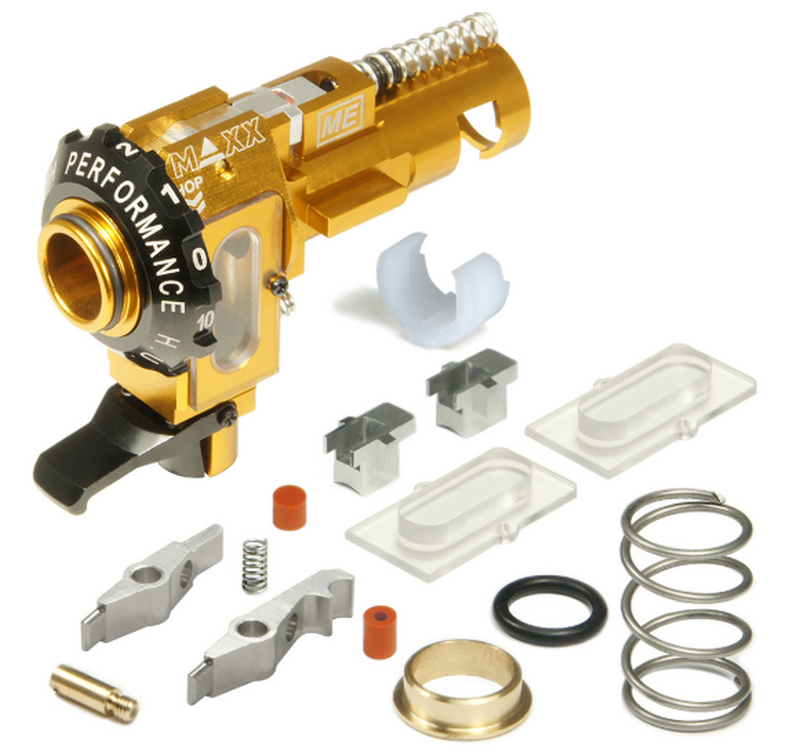

Includes:
1 x CNC Aluminum Hopup Chamber ME Pro (with BB Latching System) unit
2 x Strong Clear Vinyl Cover
1 x CNC Aluminum Standard-Hop Arm
1 x CNC Aluminum R-Hop Arm
1 x Silicone Rubber Standard-Hop Nub Damper
1 x Silicone Rubber R-Hop Nub Damper
1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub
1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub
1 x CNC Brass Threaded Slot Pin
1 x CNC Delrin Locking C-Clip
1 x CNC Barrel Brass Spacer
1 x Brass Spacer Holder Oring
3 x Steel Compression Spring
Specification:
Overall Length: 51mm.
Overall Height: 37.75mm.
Hub Outer Diameter (to fit into Gear Box): min 11mm - max 11.5mm.
Hub Outer Diameter (to fit into Outer Barrel): min 12mm.
Hub Inner Diameter (to fit Nozzle): max 8.3mm.
Feeder Outer Diameter (to fit magazine): min 9.25mm.
Feeder Length (to fit magazine): max 6.25mm.
Material: Aluminum 6061
Features:
Overall Height: 37.75mm.
Hub Outer Diameter (to fit into Gear Box): min 11mm - max 11.5mm.
Hub Outer Diameter (to fit into Outer Barrel): min 12mm.
Hub Inner Diameter (to fit Nozzle): max 8.3mm.
Feeder Outer Diameter (to fit magazine): min 9.25mm.
Feeder Length (to fit magazine): max 6.25mm.
Material: Aluminum 6061
Features:
Machined from a solid aircraft aluminum block with tight
tolerances to provide better accuracy, consistency, and
durability.
tolerances to provide better accuracy, consistency, and
durability.
Improved accuracy and ensure consistent air seal for
Tokyo Marui & similar, including KRYTAC, except KWA
M4-M16 Standard AEG series.
Tokyo Marui & similar, including KRYTAC, except KWA
M4-M16 Standard AEG series.
Precision rotary dial design for fine hopup adjustments.
Re-engineered the hopup levers and concave nubs to work
best with R-hop, Flat-Hop and Standard-Hop to keep the
BBs shooting straight and accurate on every single shot.
best with R-hop, Flat-Hop and Standard-Hop to keep the
BBs shooting straight and accurate on every single shot.
Removable Brass Threaded Slot Pin for setup and
maintenance.
maintenance.
Accepted the nozzle length from 21.00mm to 21.25mm.
Fully compatible with most aftermarket soft and hard rubber
bucking without losing FPS or dropping BBs.
bucking without losing FPS or dropping BBs.
Equipped with a new CNC Delrin Locking C-Clip design to
hold barrel tight without wobbling and twisting.
hold barrel tight without wobbling and twisting.
Equipped with 3 compression springs on top, at bottom and
in center of housing to ensure the hopup unit is exactly
centered, straight and air tight.
in center of housing to ensure the hopup unit is exactly
centered, straight and air tight.
Compatible with any V2 gear boxes with 11mm or
11.5mm bore.
11.5mm bore.
Specially designed with BB Latching System to prevent
dropping BBs after removing the magazine.
dropping BBs after removing the magazine.
Manually opened to release BBs from inside hopup chamber
by hand.
by hand.
The UV LED Tracer and Electronic Module to glow BBs in
the dark ready!
the dark ready!
The Empty Magazine Detection Sensor to stop Motor/HPA
firing ready!
